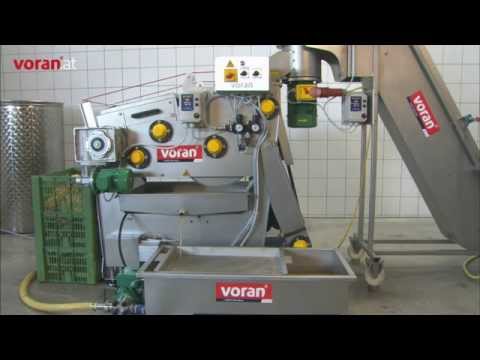

Belt press EBP350
Belt press with pneumatic belt tensioner, automatic belt control and high pressure belt cleaner (high pressure cleaner required). The mash is applied to the belt in a uniform layer by the adjustable metering box, at the end of the pressing sequence the pomace is removed from the belt by a scraper.
Add to inquiry list
Images and Videos
Documents
| Technical data | |
|---|---|
| Height pomace ejector | 775 mm |
| Height waste water drain | 120 mm |
| Height juice outlet | 485 mm |
| Connection for juice outlet | 1 |
| Connection for waste water | ø 48,3 mm |
| Water consumption for cleaning | 2 l/min |
| Contact time | 1 min |
| Belt speed | 2 m/min |
| Juice yield | up to 75 % |
| Material | 1.4301 / AISI 304 |
| Weight | 355 kg |
| Conveyor height | 0 - 50 (infinitely-variable) mm |
| Conveyor width | 240 mm |
| Strip length | 4 900 mm |
| Belt width | 350 mm |
| Discharge height | 1 350 mm |
| Height | 1 350 mm |
| Width | 970 mm |
| Length | 1 290 mm |
| Electrical protection | 16 A |
| Connected load | 400V 50Hz (3 phases) |
| Motor rating | drive motor 0,37 (0,5) cleaning motor 0,12 (0,16) kW (PS) |
| Nominal rating kg/h | up to 300 kg/h |
Processable materials
Apples, Pears, Quince, Beetroot, Carrots, Manioc, Vegetables.
This is only an example list of materials that have been tested and processed in practice.
| Options, accessories and spare parts | |||
|---|---|---|---|
| 220503504 | flange bearing per piece |
Add to inquiry list
|
|
| 590102500 | food fat cartridge 400 g |
Add to inquiry list
|
|
| 410200102 | plug wire |
Add to inquiry list
|
|
| 410101501 | screen conveyor EBP350 |
Add to inquiry list
|
|
| 160200029 | frequency converter for old version 1465 (for mounting outside the control cabinet) |
Add to inquiry list
|
|
| 812004003 | shaft seal |
Add to inquiry list
|
|
| 220503502 | protective cap |
Add to inquiry list
|
|
| 162241144 | plastic bearing Ø 80 mm |
Add to inquiry list
|
|
| 16449020 | band regulating valve |
Add to inquiry list
|
|
| 164000001 | conversion control right EBP350 |
Add to inquiry list
|
|
| 730400015 | adapter for HP cleaner, up to 170 bar |
Add to inquiry list
|
|
| 730400018 | high-pressure cleaner, up to 170 bar 3 x 400 V 50 Hz |
Add to inquiry list
|
|
| 700002011 | compressor, up to 10 bar |
Add to inquiry list
|
|
| 10023274 | level monitoring EBP350 |
Add to inquiry list
|
|
