Belt press EBP500

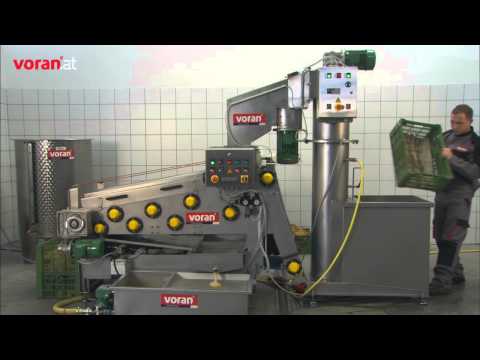

Belt press with pneumatic belt tensioner, automatic belt control, high pressure belt cleaner and optional brush cleaning system for the belt. The mash is applied to the belt in a uniform layer by the adjustable metering box, at the end of the pressing sequence the pomace is removed from the belt by a scraper. In combination with our WALC and WAR65 washing systems, the level of the metering box is automatically supervised and controlled.
Add to inquiry list
Images and Videos
Documents
| Technical data | |
|---|---|
| Scope of supply | high pressure cleaner, compressor |
| Height pomace ejector | 540 mm |
| Height waste water drain | 170 mm |
| Height juice outlet | 300 mm |
| Connection for juice outlet | 1 ½ |
| Connection for waste water | ø 76,1 mm |
| Water consumption for cleaning | 3 l/min |
| Contact time | 2,8 - 1 min |
| Belt speed | 1,4 - 3,6 m/min |
| Juice yield | up to 75 % |
| Material | 1.4301 / AISI 304 |
| Weight | 585 kg |
| Conveyor height | 0 - 50 (9 levels) mm |
| Conveyor width | 300 mm |
| Strip length | 6 600 mm |
| Belt width | 500 mm |
| Discharge height | 1 300 mm |
| Height | 1 300 mm |
| Width | 1 130 mm |
| Length | 1 860 mm |
| Electrical protection | 16 A |
| Connected load | 400V 50Hz (3 phases) |
| Motor rating | Drive motor 0,75 (1,02) cleaning motor 0,12 (0,16) kW (PS) |
| Nominal rating kg/h | up to 700 kg/h |
Processable materials
Apples, Pears, Quince, Beetroot, Carrots, Manioc, Vegetables.
This is only an example list of materials that have been tested and processed in practice.
| Options, accessories and spare parts | |||
|---|---|---|---|
| 16449020 | band regulating valve |
Add to inquiry list
|
|
| 162241144 | plastic bearing Ø 80 mm |
Add to inquiry list
|
|
| 220503504 | flange bearing per piece |
Add to inquiry list
|
|
| 220503502 | protective cap |
Add to inquiry list
|
|
| 410200103 | plug wire |
Add to inquiry list
|
|
| 410101801 | screen belt EBP500 (from year of construction 2007) |
Add to inquiry list
|
|
| 410101301 | screen belt EBP500 (up to year of construction 2006) |
Add to inquiry list
|
|
| 120200600 | emergency switch |
Add to inquiry list
|
|
| 16412050 | centering ring for shaft seal |
Add to inquiry list
|
|
| 812004001 | shaft sealing ring (from year of construction 2008) |
Add to inquiry list
|
|
| 164123054 | flange bearing (milled) |
Add to inquiry list
|
|
| 16449012 | ribbon flag |
Add to inquiry list
|
|
| 10017905 | button for valve for item 16449020 |
Add to inquiry list
|
|
| 199900540 | support frame EBP500 for hose connection |
Add to inquiry list
|
|
| 164100001 | conversion control right EBP500 |
Add to inquiry list
|
|
| 164136002 | dosing hopper for usage with SA200 (shop assembly) |
Add to inquiry list
|
|
| 164136001 | dosing hopper for usage with SA200 (for later conversion) |
Add to inquiry list
|
|
| 10018165 | foot extension 150 mm (2 pcs. / EBP) per piece |
Add to inquiry list
|
|
| 164150002 | foot extension 250 mm (2 pcs. / EBP) per piece |
Add to inquiry list
|
|
| 164187000 | brush roller driven (retrofit) EBP500 |
Add to inquiry list
|
|
| 164187000W | brush roller driven (shop assembly) EBP500 |
Add to inquiry list
|
|
