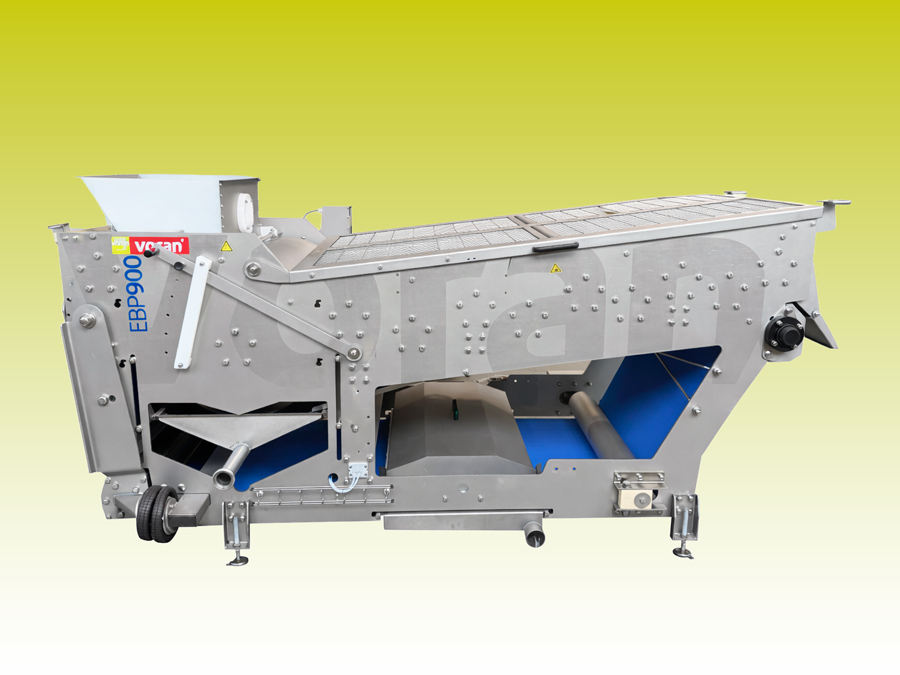

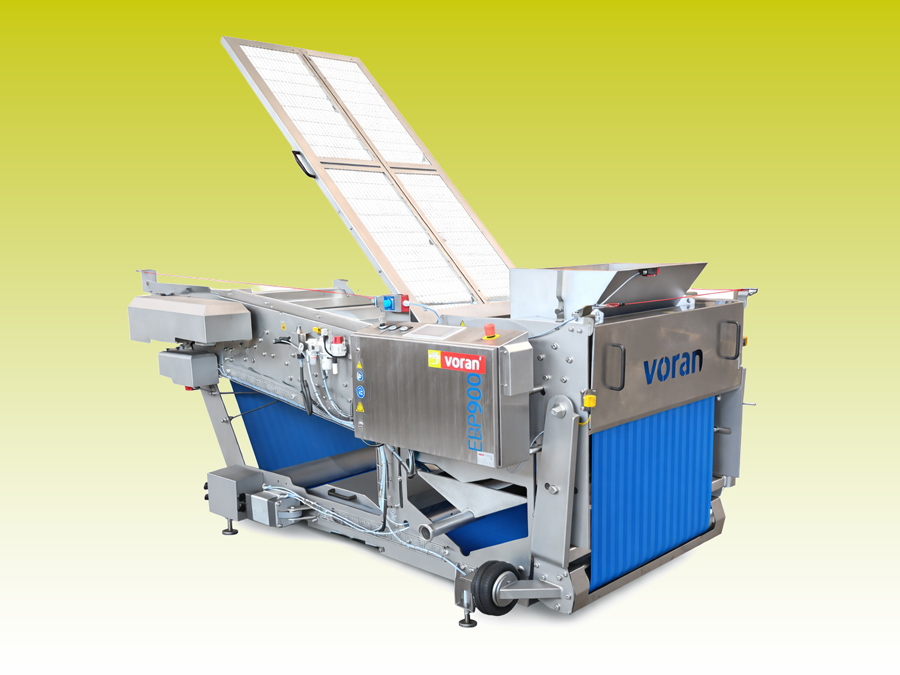

Belt press EBP900

EBP900—this continuous press system combines innovative pressing technology with ease of operation. Pneumatic belt tensioning, automatic belt adjustment, high-pressure belt cleaning, and optional brush cleaning are further features that set this single-belt press apart. The mash is evenly applied to the screen belt via the adjustable dosing hopper. At the end of the pressing process, the pomace is removed from the press belt by a scraper. When used in combination with our WALC and WAR65 washing systems or the SA300 and SA400 inclined conveyors, the fill level of the dosing hopper is automatically monitored and controlled.

Add to inquiry list

Images and Videos

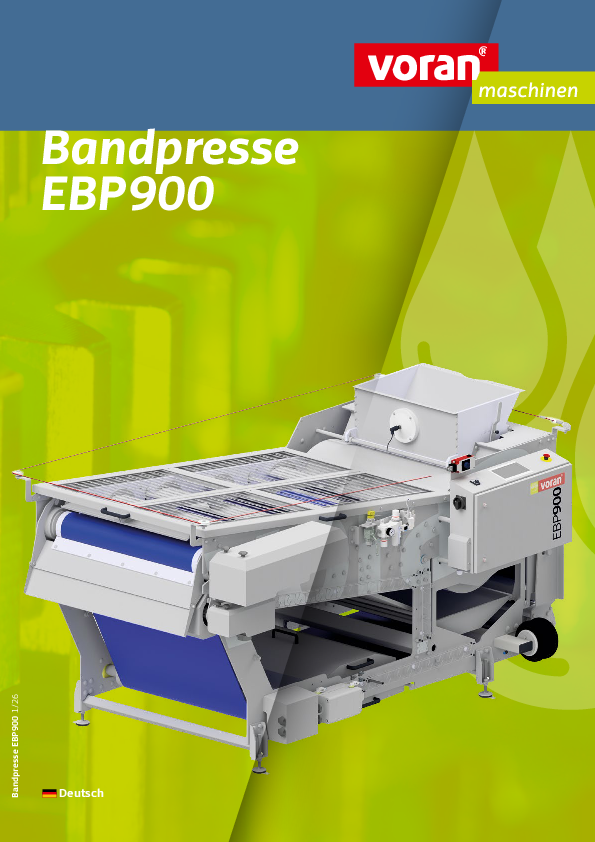

Documents

Technical data
Scope of supply	High-pressure washer, air compressor
Height pomace ejector	832 mm - with the brush roller option: 790 mm
Height waste water drain	64 mm
Height juice outlet	300-440 mm
Connection for juice outlet	1 ½ “ (Optional)
Connection for waste water	DN75
Water consumption for cleaning	8,5 l/min
Contact time	1 – 4 min
Belt speed	1,0 – 3,5 m/min
Juice yield	up to 75 %
Material	1.4301 / AISI 304
Weight	1800 kg
Conveyor height	10 - 50 mm
Conveyor width	680 mm
Belt width	900 mm
Discharge height	1 463 mm
Height	1 463 mm
Width	1 750 mm
Length	2 920 mm
Electrical protection	16 A
Connected load	400 V, 50 Hz (3-phase)
Motor rating	Drive motor 0.75 (1.0), brush cleaning 0.37 (0.5) kW (PS)
Nominal rating kg/h	up to 2,400 kg/h

Processable materials
Apples, Pears, Quince, Carrots, Beetroot, Manioc, Rhubarb, Vegetables.
This is only an example list of materials that have been tested and processed in practice.
