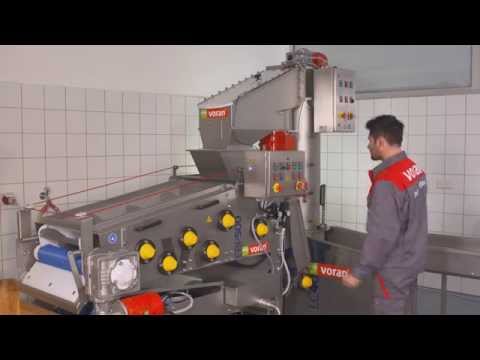

Belt press EBP500

Belt press with pneumatic belt tensioner, automatic belt control, high pressure belt cleaner and optional brush cleaning system for the belt. The mash is applied to the belt in a uniform layer by the adjustable metering box, at the end of the pressing sequence the pomace is removed from the belt by a scraper. In combination with our WALC and WAR65 washing systems, the level of the metering box is automatically supervised and controlled.

Add to inquiry list

Images and Videos

Belt press EBP500
Belt press EBP500
EBP500 Detail
Belt press EBP500
Belt press EBP500

Documents

Belt press EBP500
Modular line M500
Technical data
Scope of supply high pressure cleaner, compressor
Height pomace ejector 540 mm
Height waste water drain 170 mm
Height juice outlet 300 mm
Connection for juice outlet 1 ½
Connection for waste water ø 76,1 mm
Water consumption for cleaning 3 l/min
Contact time 3 - 1,5 min
Belt speed 1,2 - 2,4 (continuous) m/min
Juice yield up to 75 %
Material 1.4301 / AISI 304
Weight 520 kg
Conveyor height 0 - 50 (9 levels) mm
Conveyor width 300 mm
Strip length 6 530 mm
Belt width 500 mm
Discharge height 1 300 mm
Height 1 300 mm
Width 1 130 mm
Length 1 860 mm
Electrical protection 16 A
Connected load 400V 50Hz (3 phases)
Motor rating Drive motor 0,75 (1,02) cleaning motor 0,12 (0,16) kW (PS)
Nominal rating kg/h up to 700 kg/h

Processable materials
Apples, Pears, Quince, Beetroot, Carrots, Manioc, Vegetables.
This represents just an example, based on different materials and a selection of fruit processed in practice.

Options, accessories and spare parts
410200103 stainless steel wire for screen belt EBP500 Enquiry
410101801 screen belt (from model year 2007) EBP500 Enquiry
410101301 screen belt (up to modeyl year 2006) EBP500 Enquiry
120200600 emergency stop switch EBP500 Enquiry
162241144 plastic bearing Ø 80 mm EBP350 and EBP500 Enquiry
812004001 shaft seal 40-55-7 (from model year 2008) EBP500 Show Enquiry
812004003 shaft seal 40-72-7 (up to model year 2007) EBP500 Enquiry
220503502 protecting cap EBP500 Show Enquiry
220503504 flanged housing unit EBP350 and EBP500 Show Enquiry
164123054 flange bearing EBP500 Enquiry
16449012 belt feeler arm EBP500 Show Enquiry
10017905 button for valve EBP500 Show Enquiry
16449020 belt control valve EBP350 EBP500 EBP650 EBP1200 Show Enquiry
199900540 support frame EBP500 for hose connection Enquiry
164100001 control box right side EBP500 Enquiry
164136002 dosing hopper for usage with SA-EBP500 (shop assembly) Enquiry
164136001 dosing hopper for usage with SA-EBP500 (conversion) Enquiry
10018165 foot extension 150 mm (2 pcs./EBP500) Enquiry
164150002 foot extension 250 mm (2 pcs./EBP500) Enquiry
164187000 brush roller driven, on shop assembly EBP500 Enquiry
