Grain crusher HQ4

Grain crusher with two driven hardened rollers, adjustable crushing gap and magnetic separator as standard equipment. The deep profiles of the rollers ensure optimum flake formation. Available with frame as option.

Add to inquiry list

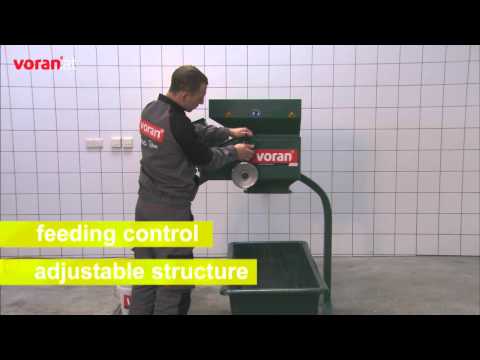

Images and Videos

Grain crusher HQ 4
Grain crusher HQ 4
Grain crusher HQ 4


Grain crusher HQ
Technical data
Capacity with mixed grain 900 kg/h
Capacity with oats 750 kg/h
Height ejector in 900 mm
Material painted steel
Weight 150 kg
Height with frame 1 485 mm
Height 585 mm
Width 530 mm
Length 690 mm
Electrical protection 16 A
Connected load 400V 50Hz (3 phases)
Motor rating 4,0 (5,45) kW (PS)

Processable materials
Peas, Grain, Broad beans.
This represents just an example, based on different materials and a selection of fruit processed in practice.

Options, accessories and spare parts
222100503 adjustable gear wheel HQ Show Enquiry
020701237 V-belt (4 pcs./HQ) HQ4 Enquiry
223232001 stand for HQ4 / HQ5,5 Enquiry
