Pasteurizer PA90 (electric)

Electro-pasteurizer with heating coil and tube heat exchanger. Straightforward operation thanks to manual flow control and manometer for supervising temperature.

Add to inquiry list

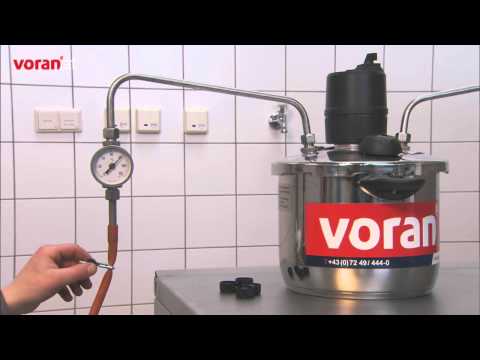

Images and Videos

Pasteurizer PA90 (electric)
Pasteurizer PA90 (electric)
voran PA90 attachment

Documents

Pasteurizer PA90 (electric)
Technical data
Material 1.4301 / AISI 304
Weight 10 kg
Electrical protection 16 A
Connected load 400V 50Hz (3 phases)
Electrical power 6 kW
Nominal rating l/h up to 90 l/h

Processable materials
Apples, Pears, Quince, Blueberries, Vegetables.
This represents just an example, based on different materials and a selection of fruit processed in practice.

Options, accessories and spare parts
880300100 glass tube PA90 Enquiry
880400100 all-purpose thermometer PA90 Show Enquiry
881100303 cover seal (Comfort Fissler) Ø26cm PA90 Enquiry
881100302 cover seal (Fissler) Ø26cm PA90 Show Enquiry
881100300 cover seal (Kelomat) Ø26cm PA90 Show Enquiry
450100400 hose clamp PA90 Enquiry
440100400 filling hose Ø12x2,5 mm PA90 Enquiry
440100300 filling hose Ø10x2 mm PA90 Show Enquiry
811200300 ALU-seal for heating PA90 Show Enquiry
811100100 seal for heating PA90 Enquiry
171100800 capillary tube regulator PA90 Enquiry
171100213 heating 380V PA90 Show Enquiry
171100602 pipe coil, stainless steel PA90 Show Enquiry
810803700 O-Ring PA90 Show Enquiry
880400301 dial thermometer PA90 Show Enquiry
171200404 drain pipe with dial thermometer PA90 Show Enquiry
171100304 feed pipe PA90 Show Enquiry
